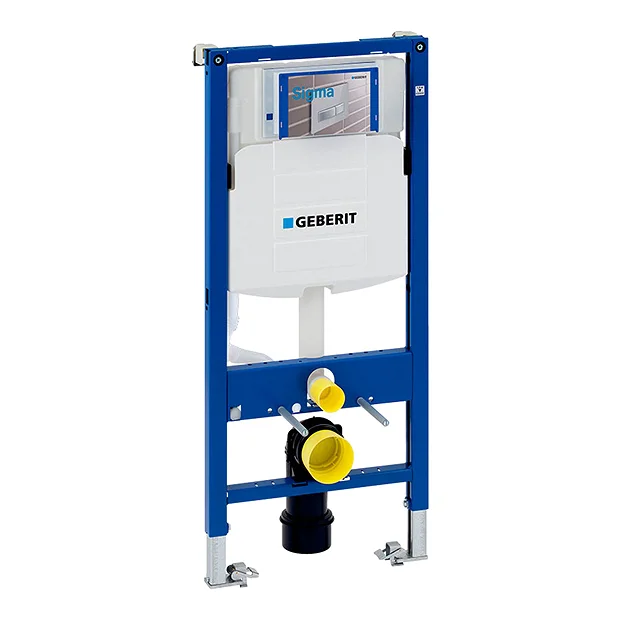

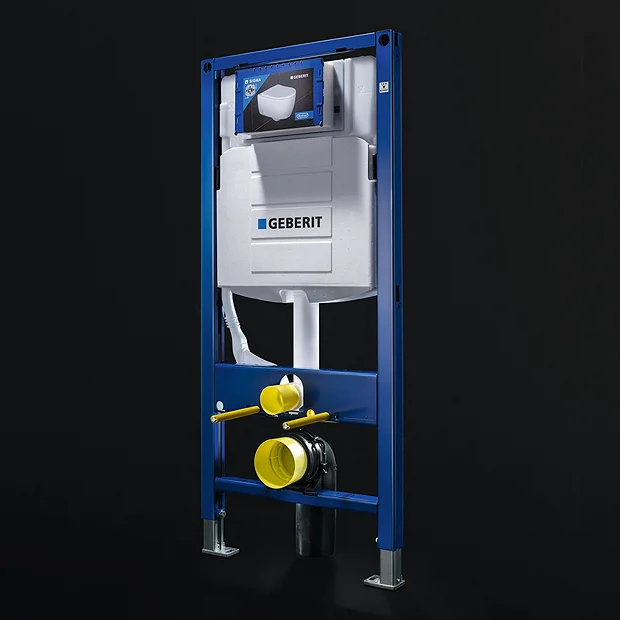

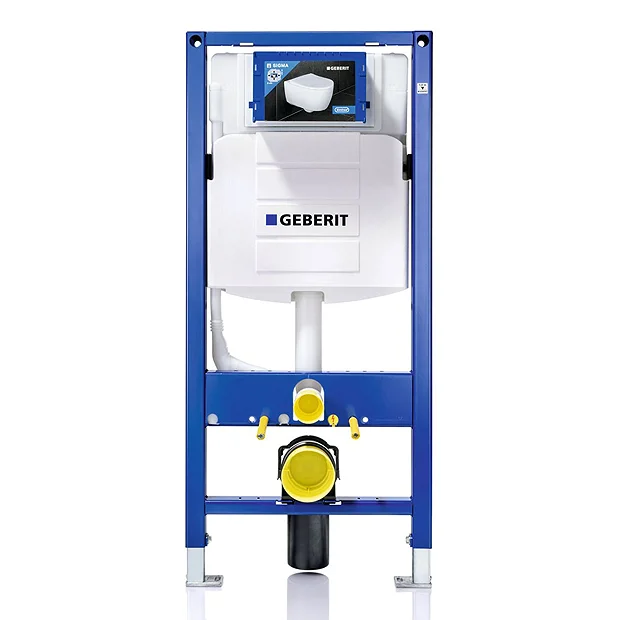

Geberit – Duofix WC Frame With UP320 Cistern – 1.12m

Geberit – Duofix WC Frame with UP320 Cistern – 1.12m

The smart way to install sleek modern looking wall-hung toilets is with Geberit Duofix frame systems. Neatly concealed behind the wall, they’re the perfect solution for every style, shape and space.

Strong, secure and flexible, Geberit frame systems sit within pre or dry wall installations bolted to the floor, supporting the sanitaryware and keeping it firmly in place. With Geberit Duofix, it’s easy to create a great contemporary look in any bathroom or cloakroom.

Geberit Wall Hung Advantages:

Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution.

Leakproof: Due to one piece blow moulded cistern, every blow moulded cistern is factory-made leak tested

Very Strong: No wobbling or vibrations – strength tested to bear a weight of up to 63 stone (400kg)

Self-impeding feet: Making changing the height of the frame a one-man job

Tool free cistern maintenance

Application purposes:

• For drywall construction
• For installation in part or room-height prewall installations
• For installation in room-height installation walls
• For installation in part or room-height Geberit Duofix system walls
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62 cm
• For floor constructions 0–20 cm

Characteristics:

• Self-supporting frame, powder-coated
• Frame with ø 9 mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Galvanized feet

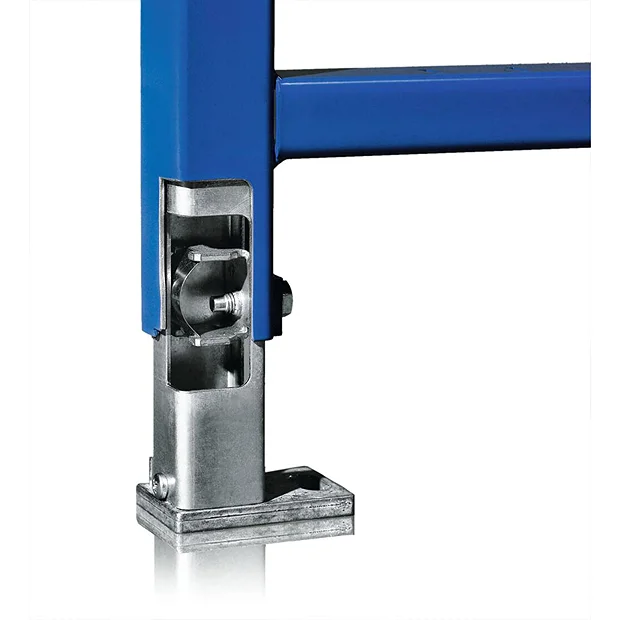

• Feet adjustable 0–20 cm
• Non-slip leg supports
• Rotatable foot plates
• Foot plate depth suitable for installation in U-profiles UW 50 and
• UW75 and Geberit Duofix system rails
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Fastening for connection bend, sound-absorbing
• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the rear or top centre
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• With fastening option for electrical connection

Scope of Delivery:

• Water supply connection Rp 1/2″ – R 1/2″, compatible with MF, with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 wall anchors
• Connection set for WC, ø 90 mm
• Connection bend 90° made of PE-HD, ø 90 mm
• Adaptor socket made of PE-HD, ø 90 / 110 mm
• 2 protection plugs
• 2 threaded rods M12
