Geberit – CleanLine Shower Channel Waste

Geberit – CleanLine Shower Channel Waste

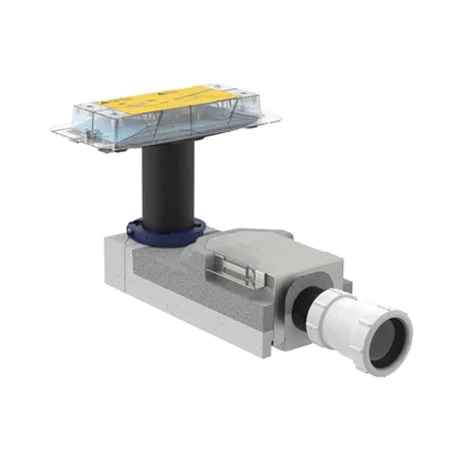

Installation set for Geberit shower channels of the CleanLine series, floor construction height from 90 mm


The CleanLine Shower Channel Waste from Geberit is an innovative and easy to install shower channel waste. It features an open outlet surface which means no concealed build-up of deposits and a sealing foil injected at the factory, this is firmly connected to the drain and ensures maximum tightness. Designed to be used in conjunction with CleanLine Shower Channels.

Application purpose

• For installation inside buildings
• For drainage of Geberit shower channels of the CleanLine series
• For floor constructions 90–200 mm
• For composite seals

Characteristics

• Quality-monitored in accordance with EN 1253-3
• Minimum screed height at inlet 90 mm
• Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems
• Base unit made of EPS, for sound decoupling and receiving the trap

Technical data

• Discharge rate     0.8 l/s
• Depth of water seal     50 mm
• Protection box cover with reference line
• Thin bed bonding flange
• Trap made of PE-HD
• Adaptor ø 50 mm to G 2 (ø 55 mm)
• Fastening material
